YM Profile Engraving and Milling Machine (Type A)
Functional characteristics
NO. | performance index | performance index | parameter |
1 | stroke | X stroke | 3000mm |
|
| Y stroke | 120mm |
|
| Z stroke | 200mm |
2 | Dimensions |
| 4800*1500*2000mm |
3 | Precision | Precision | 0.1mm |
|
| Repeatability | 0.1mm |
4 | structure | Countertop structure | High strength aluminum profiles |
|
| structure | Y/Z lead screw, X rack |
5 | speed | Maximum empty travel speed | 100000mm/min |
|
| Working speed | 30000mm/min |
6 | Spindle power | T1 | 6.0KW |
|
| T2 | 2.2KW |
7 | Operating mode |
| servo |
8 | Operating Voltage |
| AC380V/50Hz |
9 | Run command |
| G-code |
10 | operating system |
| Yiming System |
11 | net weight |
| 1800Kg |
Simple operation and detailed display
1．Operating system: Yiming customized system (programming free, modular parameters)
2. Motor and driver: Imported AC servo (X-axis 1000w Y-axis 1500w Z-axis 1000w)
3. Spindle motor: 6.0kw * 1 unit 2.2kw * 1 unit
4. Frequency converter: 7.5kw/380v * 1 set 2.2kw/380v * 1 set
5. Guide rail: straight square rail imported from Taiwan, high dustproof and lubrication free slide rail
6．Transmission mode: X-axis rack, Y-axis, Z-axis ball screw imported from Taiwan
7．Bed structure: rectangular steel pipe welding, cast aluminum head structure
8. Dust prevention treatment: Organ paper shield to effectively avoid dust and debris; Protective guide rail and lead screw
9. Main electrical components: Schneider
10. Cable: special cable for supporting chain
11. Lubrication: Automatic oil injection pump is used to regularly supply oil to each lubrication point
Product video introduction

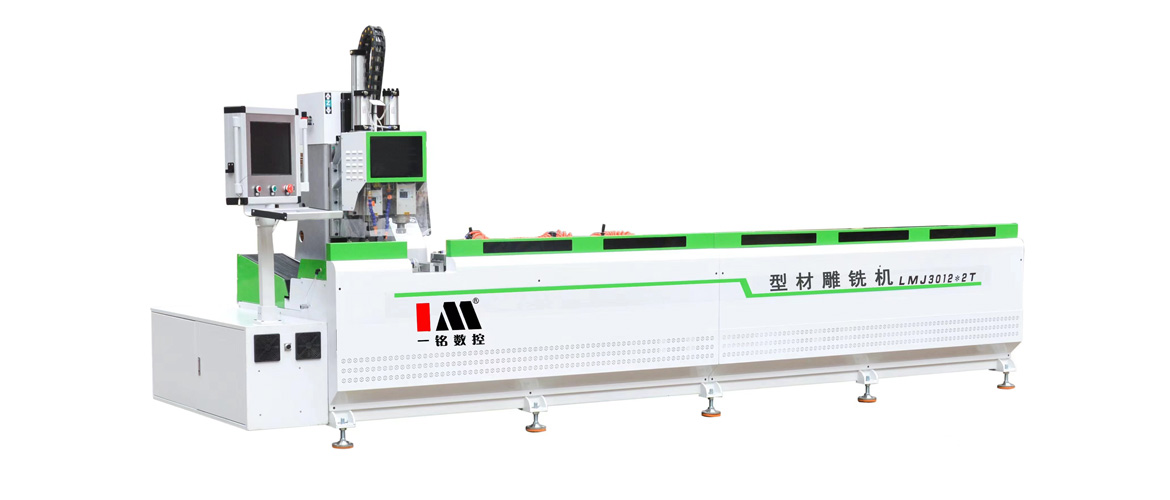

YM Profile Engraving and Milling Machine (Type A)
◆ YM Intelligent Profile Processing Center, equipped with industry-leading components.
◆ Adopt air-cooled electric spindle, and the drive system adopts imported high-power servo motor.
◆ Taiwan Yiming customized system, modular parameters, foolproof operation, simple and easy to use.
◆ CNC digital control, with breakpoint memory function, ensures continuous operation in the event of accidental (knife breakage) or the next day.
◆ Overall structural welding, tempering and aging treatment, firm and not deformed. X-Z main casting structure, strong cutting force, higher accuracy
Cut sample
◆ Minimal doors, ecological doors and other furniture industries, profile processing.
◆ Mechanical processing industry: processing of soft metals such as copper and aluminum.
◆ Profile products: audio, game cabinets, computer tables, sewing machine tables, musical instruments.
