YM7-Laser side hole machine
Functional characteristics
The models developed for the upgrading of panel furniture connection technology, the mainstream invisible parts on the market, such as Lamino, Kehuang, and Mudeyi all support processing.
Of course, "SH-AL" is also equipped with a laser scanning function, so it still supports the processing of traditional three-in-one, two-in-one, and dowel connection methods.

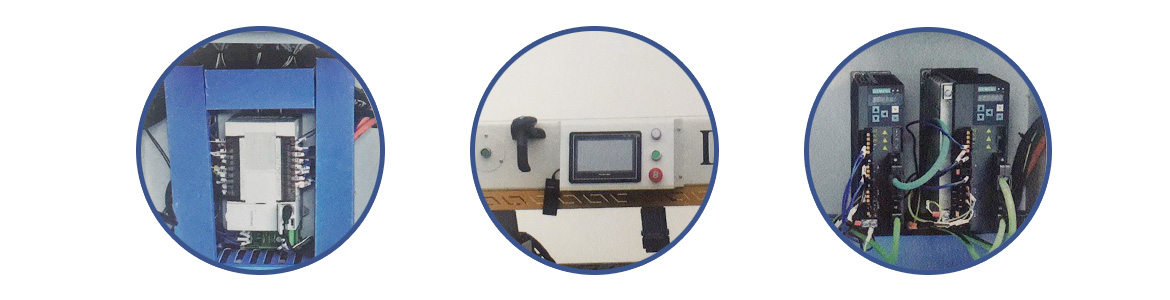

Simple operation and detailed display
Product video introduction

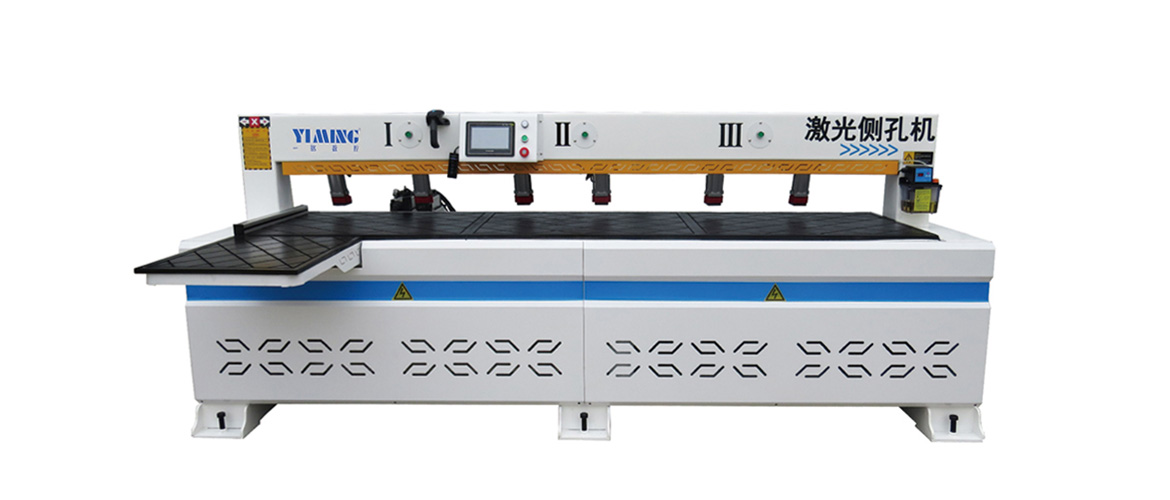

YM7-Laser side hole machine
1. Two spindles and one saw blade spindle.
2. All mainstream invisible connectors on the market can be processed.
3. Arbitrary switching between three stations, double stations, and single stations
4. The laser scanning function is installed and configured, so it still supports the processing of traditional three-in-one, two-in-one, and dowel connection methods.
Applicable industries: panel furniture, whole house customization, plastic door panels, tables, chairs, doors and windows
Equipment technical parameters
Model | YM7
| ||
work plan | 2500mm | Spindle speed | 24000RP m/min |
Spindle motor power | 2.2KW | Processing speed | 80m/min |
Empty travel speed | 100m/min | Drive motor power | 750W+400W |
Laser sensor | American Bonner Laser Probe | Control system guide rail | 广东兴想科技 |
Scan code gun | Dual system dedicated wireless code scanning gun | guide | 20方形导轨 |
Lead screw | TBI screw | rack | 爵力齿条 |
Reducer | Taiwan Planet | Bearings and housings | 台湾人本 |
cable | High-soft double-sheath shielded cable | Pneumatic Components | 亚德克原件 |
mesa | Carved countertop | Main electrical parts | 正泰电器 |
cylinder | Pressure cylinder | Limit | 定制限位安全防护 |
Main function: three-in-one / slotting / five kinds of hidden parts | |||
Cut sample
our service
pre-sale service
*Pre-sales free use training for customers.
*The trainee must have certain relevant academic qualifications and knowledge, and the supplier will train the customer in programming, operation, processing and daily maintenance. The trainee must be fixed and study carefully.
*Supplier technical engineers visit customers from time to time, and communicate with customers on machine operation and product processing. Users can consult Yiming any questions by telephone or email at any time.
After-sales service
* During the warranty period, the machine will be repaired free of charge, and the equipment repairs within the warranty period will be clearly marked.
*The warranty period provides customers with two free maintenance.
*General maintenance work is carried out on-site, and the corresponding maintenance time does not exceed 36 hours
*The whole machine is guaranteed for one year free of charge
