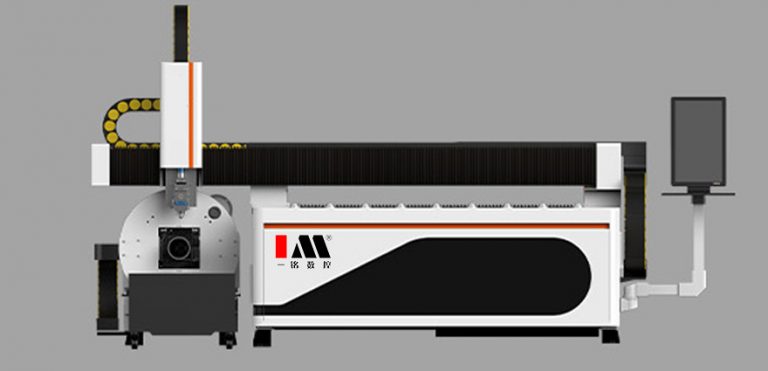

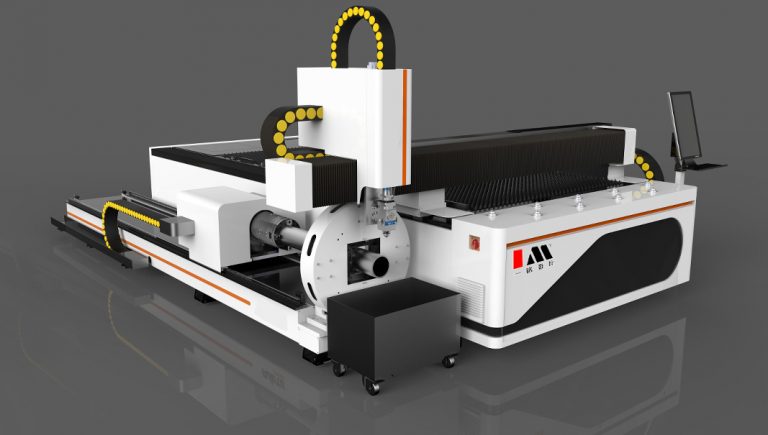

Plate and tube integrated fiber laser cutting machine
Plate and tube integrated laser cutting machine
Stable performance, high precision and fast speed
Stable cutting, no burrs
The high-precision installation is controlled at 0.03mm, which makes the machine run smoothly and cut precision
One machine, dual use, cost saving
It can cut metal plates and metal pipes
Equipment technical parameters
model | YM3015HT YM4015HT YM4020HT YM6015HT YM6020HT |
Processing format | 3000×1500 4000x 1500 6000x 1500 6000×2500 |
直径 | 110/160/220 |
长度 | 3000 16000 |
Support power | 1000-3000W |
Mechanical positioning accuracy | +0 03MM |
Repeat positioning | +0 02mm |
Maximum acceleration | 0 8G |
Maximum operating speed | 80m/min |
Laser | IPG/RAYCUS/MAX |
product details

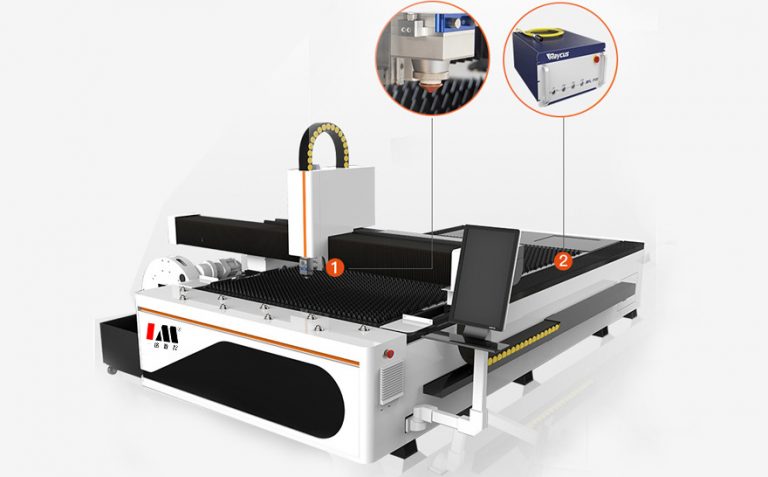

Laser
Laser head
Tube welding bed design

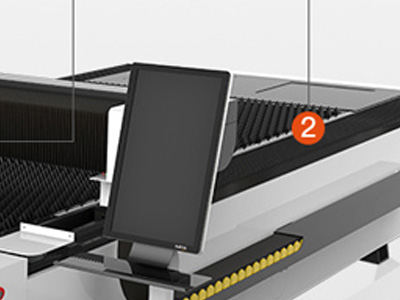

PAD design display
Product video introduction

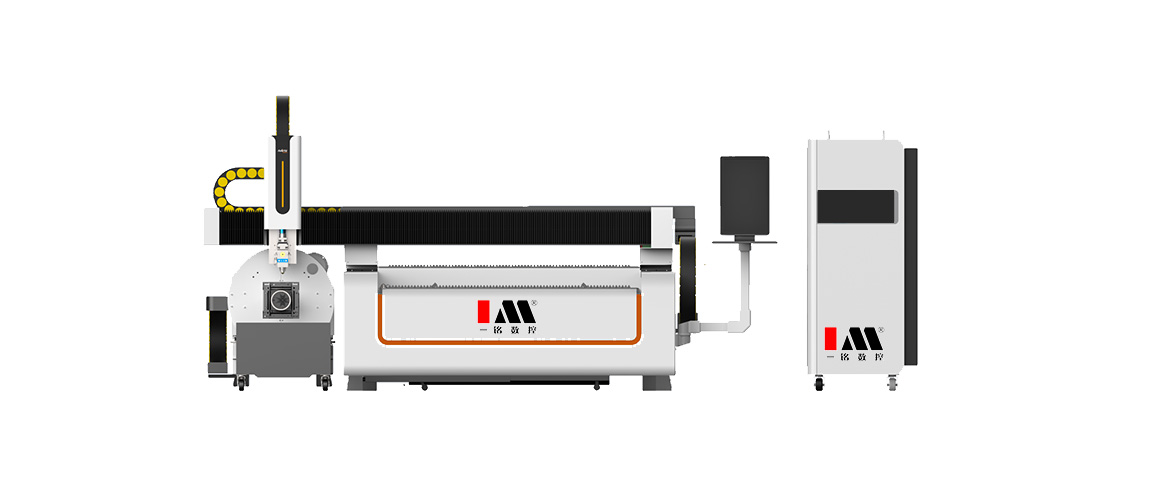

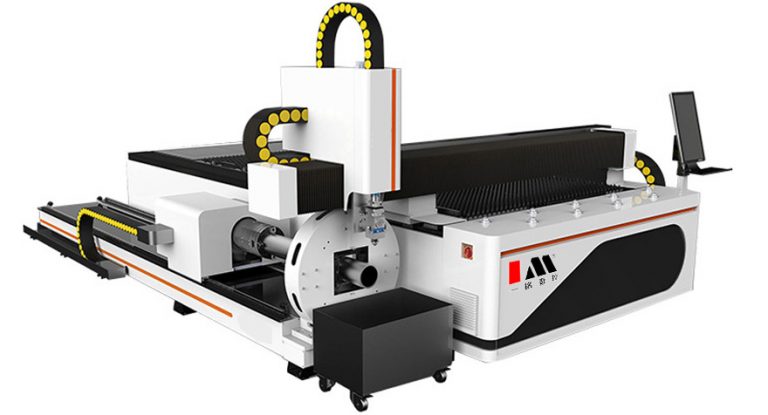

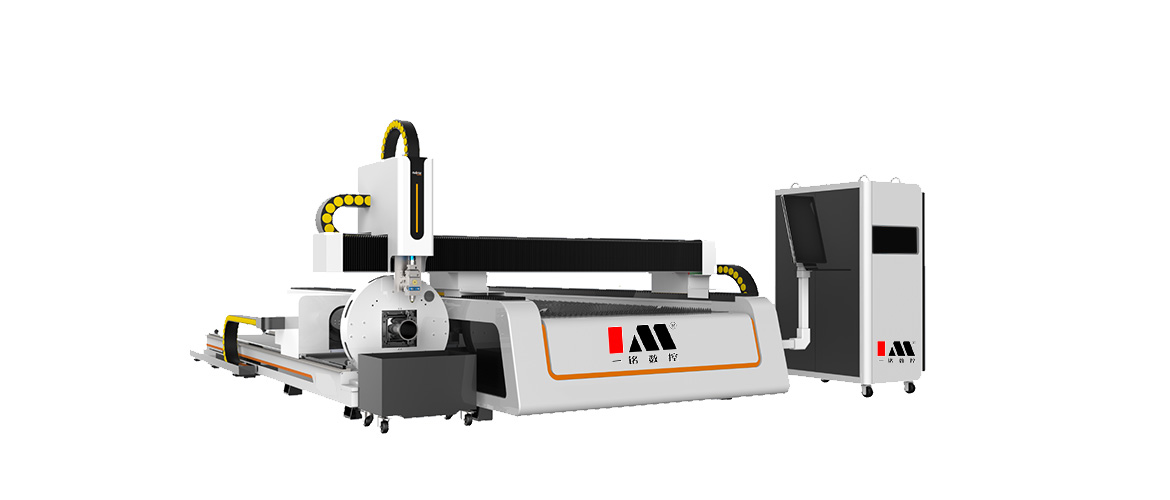

Plate and tube integrated fiber laser cutting machine
Fiber laser cutting machine is aimed at the manufacture of agricultural machinery, textile machinery, food machinery, construction machinery and other large machinery and equipment. It can process any graphics and cut steel, stainless steel, aluminum alloy plate, cemented carbide and other materials of any hardness without deformation. .
Cut sample
