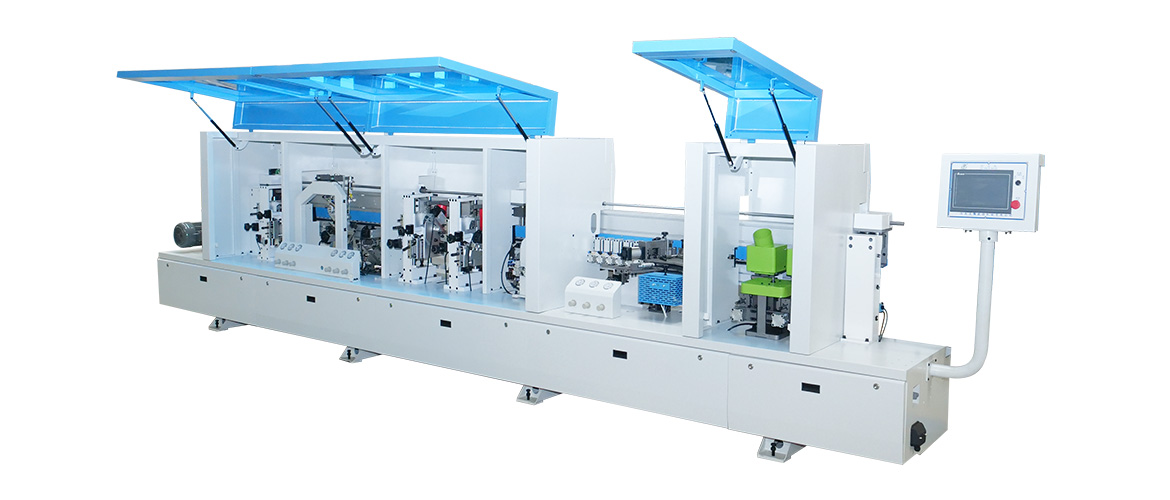

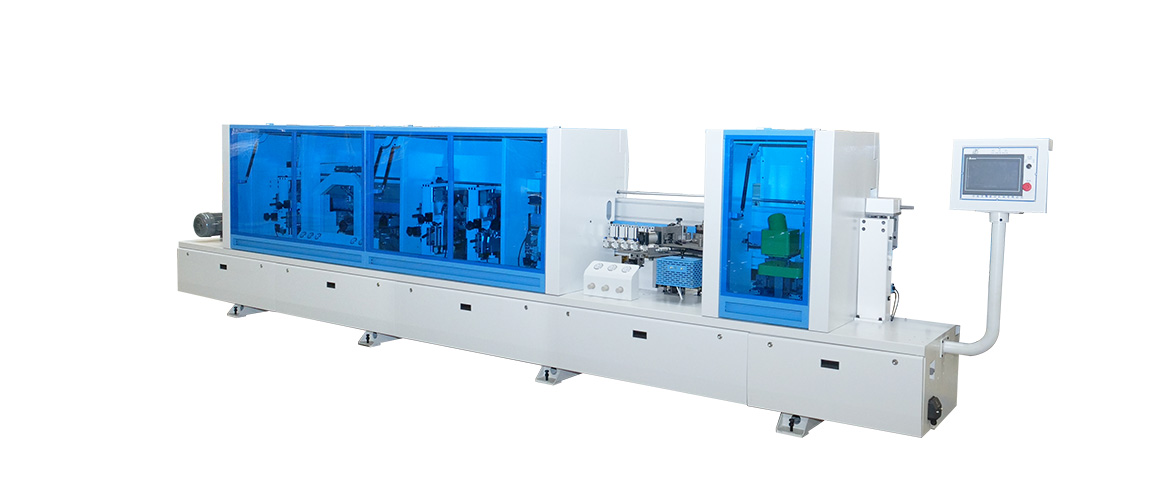

YM468J-High Speed Fully Automatic Edge Banding Machine
Functional characteristics
Pre-milling-Glue-Cutting-Pressing-Head and Tail-Rough Repair-Fine Repair-Tracking-Edge Scraping-Polishing
Scope of application: suitable for panel furniture, custom furniture, cabinets and wardrobes, office furniture, solid wood furniture, tables, chairs, doors and windows, wood products, decoration and decoration industries, etc.
Machinable board: suitable for various boards such as density board, ecological board, multi-layer board, particle board, flat solid wood board, aluminum honeycomb board, etc.
Simple operation and detailed display
Touchscreen: Taiwan Delta
The industry's leading touch screen in the woodworking industry, with fast response and no accidental touch
Pre-milling
The diamond pre-milling cutter mills away the corrugated traces and excess burrs of the spiral trimming knife of the wood board, so that the board edge is more closely fitted to the edge band, and the bonding is stronger and more beautiful. The pneumatically controlled pre-milling seat is more precise and easier to control.
Six-wheel pressing, one large, five small, six pressing wheels, glued welt
The 6-wheel press fit is more precise than the 4-wheel. The glue line is light and does not run. The fit is firm. The thick and thin veneer can be easily transported. The cylinder controls the glue door. The glue quantity is stable and the thickness is even.
The double glue pot can use different colors of glue, without frequent cleaning of the glue pot, which improves efficiency.
Centralized Lubrication System
Automatic timing oil injection and maintenance, multi-channel oil pipes are connected to each key moving part, all-round lubrication, reduce machine wear and extend machine service life.
Front and back
The single track has the same head, cutting the excess edge bands at the two ends of the sheet, and the air pressure is more stable, and the head and tail are more stable.
Rough repair
Click the automatic cylinder control on the screen, and the six-blade R knife trims off the excess edge banding to form a rounded corner, and the trimming is more beautiful.
Preset 4 kinds of edge banding thickness, pneumatic control, convenient and practical for one-key selection on the screen
refine
Click the automatic cylinder control on the screen, and the six-blade R knife trims off the excess edge banding to form a rounded corner, and the trimming is more beautiful.
Pneumatic clamping edge band thickness, pneumatic control, convenient and practical one-key selection on the screen
Scraping
The scraper controlled by pneumatic entrainment does not need to be adjusted separately, and the screen is in place with one button. Cemented carbide R knife smooths the fine lines of the edge banding strip to make it smooth
polishing
Polish the plate after edge sealing to make the top and bottom of the edge band more smooth and beautiful
track
Accurately mill the 4 corners of the bonded sideband of the sheet into an R arc shape to increase the beauty of the corners of the workpiece
Product video introduction
YM468J-High Speed Fully Automatic Edge Banding Machine
Used in the production of panel furniture and wooden doors. It has a very important influence on various wooden furniture, wooden doors and other products. Functions include pre-milling, gluing, alignment, rough repair, finishing, scraping, copying, marking, polishing, grooving, etc. It is a good assistant in the production of wood products.
Equipment technical parameters
model | 468J |
Machine size | 6600*970*1700mm |
working pressure | 0.6Mpa |
Total power | 18.6KW |
Feed rate | 15-28m/min |
Electric lift | 0.37KW |
Sheet thickness | 10-60mm |
Sheet length | ≧120mm |
Sheet width | ≧50mm (end 50mm) |
Edge band thickness | 0.4-3mm |
Cut sample
