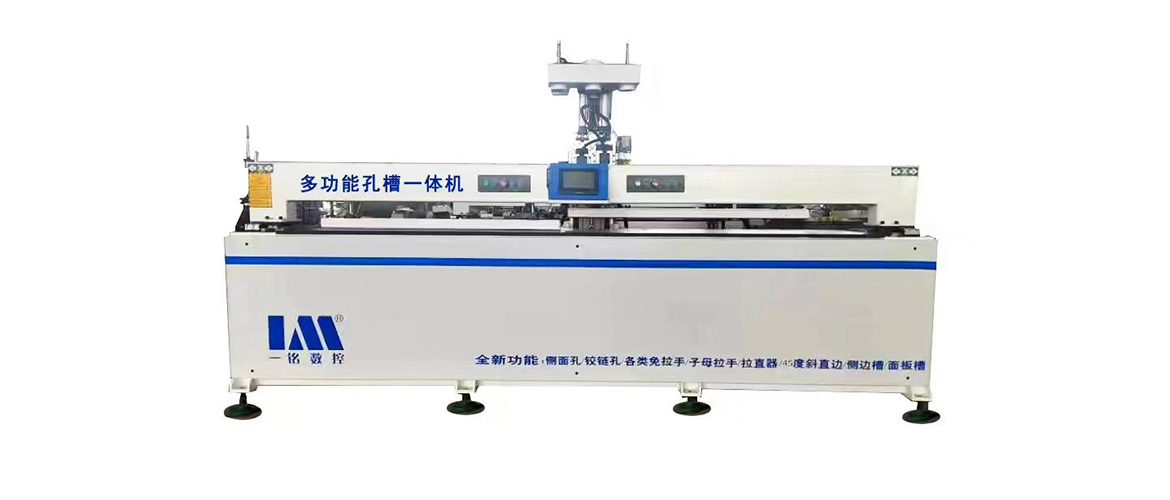

YM multifunctional hole slot all-in-one machine
产品设计亮点
◆YM–多功能孔槽一体机,各项配备均采用行业领先部件。
◆采用风冷电主轴，驱动系统采用伺服电机，效率更高。
◆一铭定制系统，模块化参数，傻瓜式操作，操作简单易上手。
◆ CNC digital control, with breakpoint memory function, ensures continuous operation in the event of accidental (knife breakage) or the next day.
◆ Overall structural welding, tempering and aging treatment, firm and not deformed. X-Z main casting structure, strong cutting force, higher accuracy.
适用行业
铝蜂窝板、高光门板、生态门、室内门、护墙板等家居行业门板系列。
Equipment technical parameters
NO. | performance index | performance index |
| parameter |
1 | stroke | X stroke |
| 3000mm |
Y stroke |
| 300mm | ||
Z stroke |
| 200mm | ||
2 | Dimensions |
|
| 3800*1600*2100mm |
3 | Precision | Precision |
| ±0.05mm |
Repeatability |
| ±0.05mm | ||
4 | structure | Countertop structure |
| PVC structure |
structure |
| Z 丝杠、 X/Y 齿条 | ||
5 | speed | Maximum empty travel speed |
| 60000mm/min |
Working speed |
| 15000mm/min | ||
6 | Spindle power |
| 3.5KW | |
7 | Operating mode |
|
| servo |
8 | Operating Voltage |
|
| AC380V/50Hz |
9 | Run command |
|
| G-code |
10 | operating system |
|
| Yiming Customized System |
11 | net weight |
|
| 1500Kg |
service
- Equipment installation and commissioning
*After the equipment arrives at the user, the technical engineer of Yiming CNC arrives at the user site for installation and commissioning training on the same day
*Please prepare the work before the engineer arrives at the site. For example: unloading equipment, equipment site, power supply, computer, plug-in voltage regulator, leakage protector, please actively cooperate with users. After the equipment debugging is completed, please ask the user for acceptance.
- Training
*Free after-sales training for customers.
*The trainees must have a certain level of relevant education and knowledge, and the supplier will program, operate, process, and perform daily maintenance on the customer
Face to face training requires trainees to be fixed and study diligently.
*Supplier technical engineers visit customers from time to time, and communicate with customers about machine operation and product processing. Users can consult Yiming any questions by phone or email at any time.
- After-sales service
* During the warranty period, the machine will be repaired free of charge, and the equipment repairs within the warranty period will be clearly marked.
*General maintenance work is carried out on-site, and the corresponding repair time does not exceed 24 hours.
